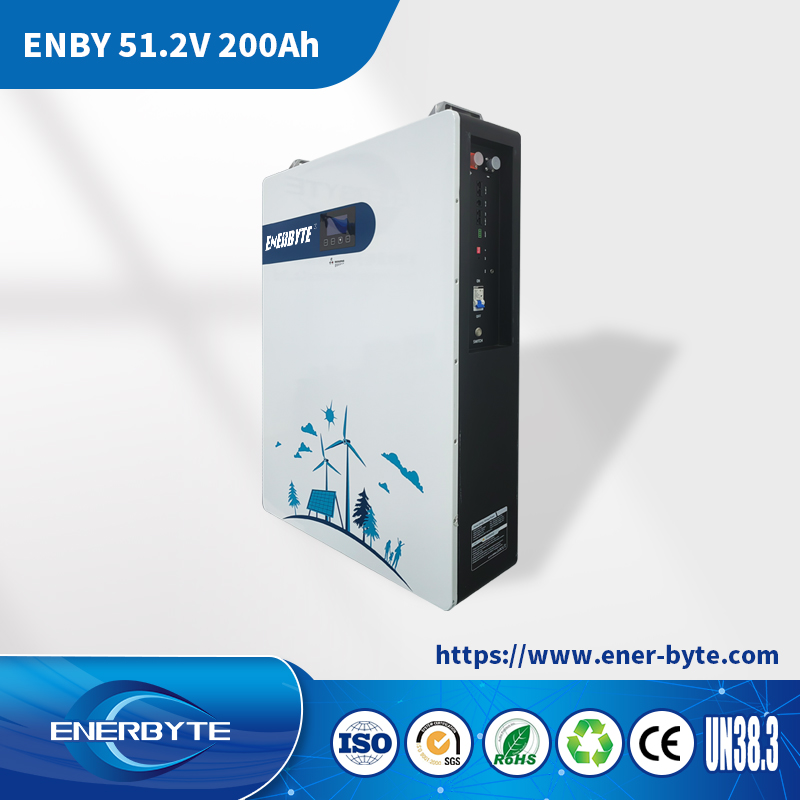

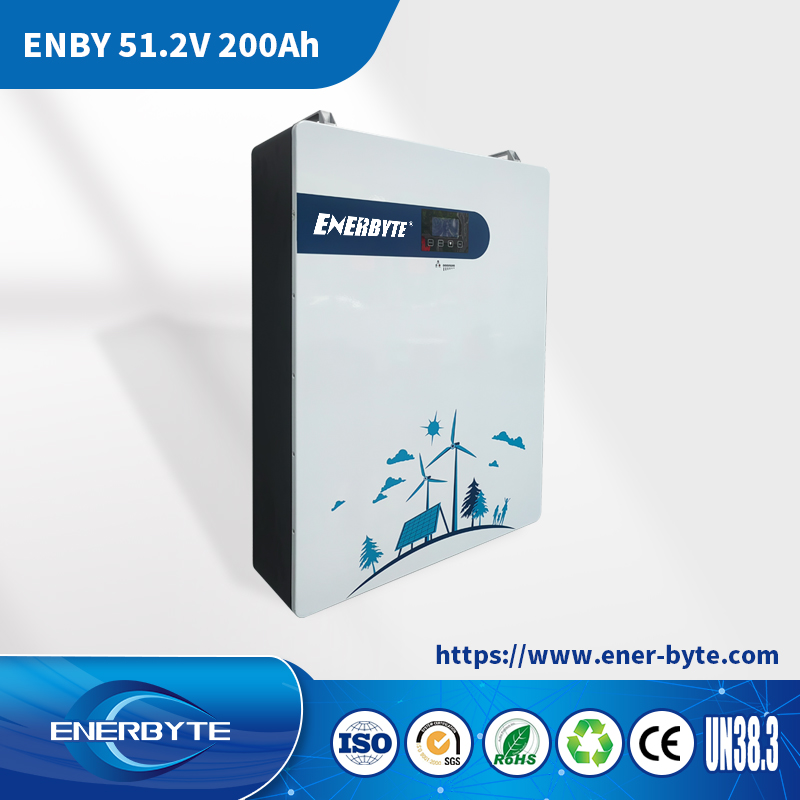

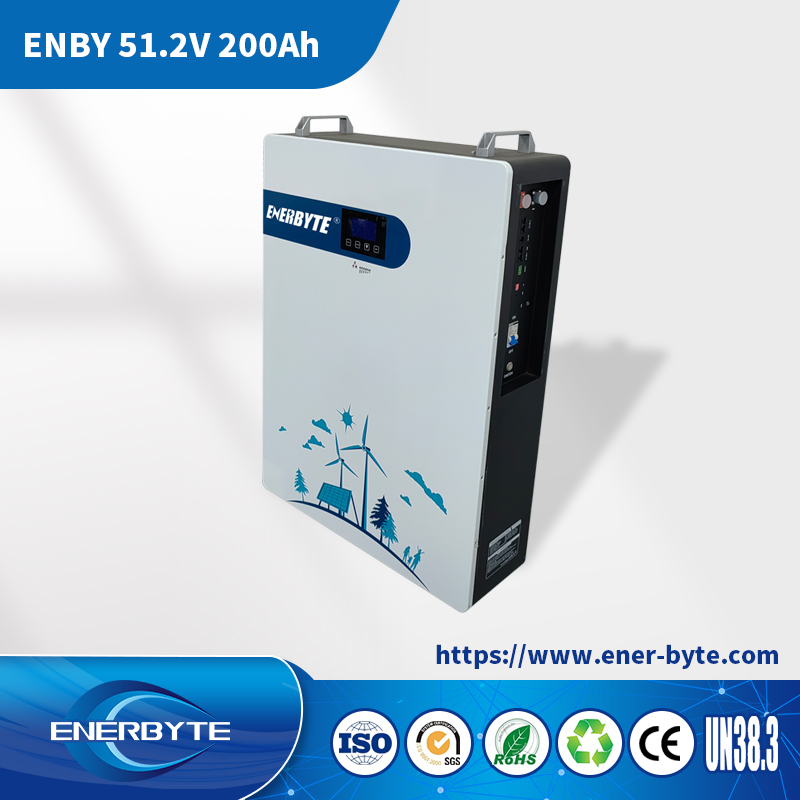

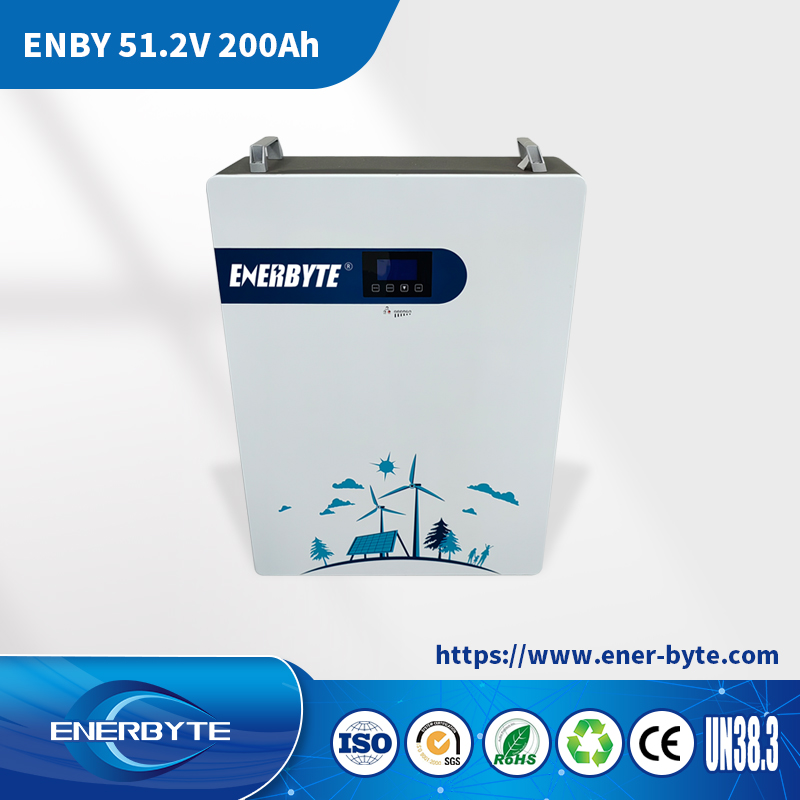

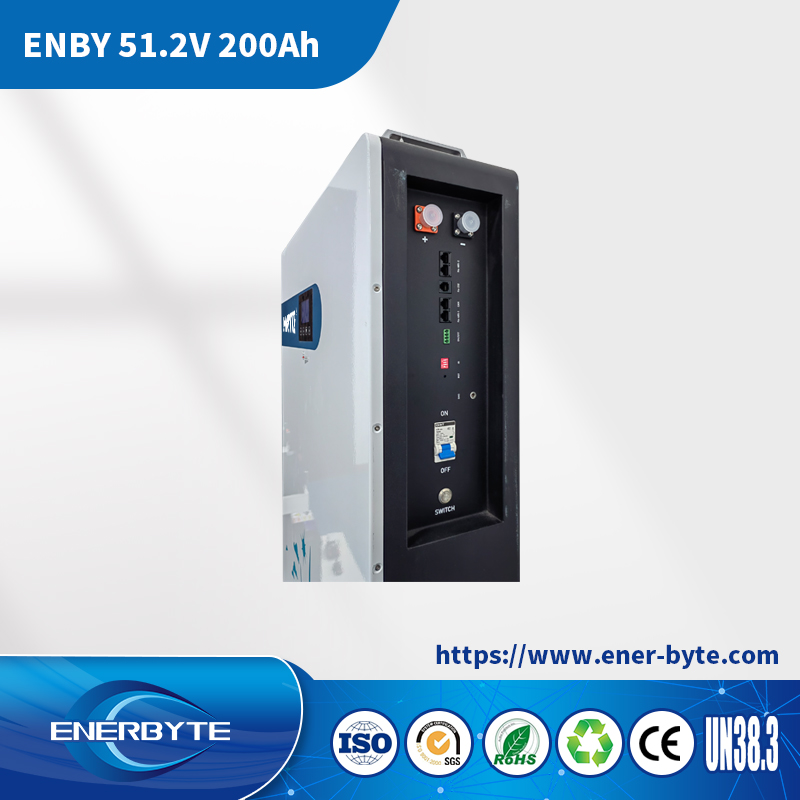

LiFePO4 POWER STORAGE WALL
Long life and safety
Vertical industry integration ensures more than 5000 cycles with 80% DoD.Safe Lithium iron phosphate battery cell.
Intelligent
Each battery with independent BMS system manages power output smartly and effectively.
Modularization
Modular design gives the end customers the power of choice of capacity Deliver up to 40.96KW with single max module (2.56kWh) at 16pcs parallel connection.
Easy to install and use
Just plug and play to minimize the installation time and cost.
Compact and fashionable design fits in your sweet home environment.
Compatibility
Compatible with most of the available Hybrid inverters.
Safety Cert
CB-IEC62619, CE-EMC, CEI 0-21, UN38.3, MSDS
Items | Specification |
Nominal Voltage | 51.2V |
Capacity | 200AH (10.24KWh) |
Charge limit voltage | 58.4V |
Working Voltage | 44.8 8.4V |
Standard charging current | 40A |
Maximum charging current | 100A |
Discharge cut-off voltage | 44.8V |
Standard discharge current | 40A |
Maximum discharge current | 100A |
Cell model | LFP 3.2V 50Ah |
Shell main material | cold rolled steel |
Dimensions | 850*625* 185±3mm(without mounting angle) |
Battery weight | 100kg±2kg |
Range of working temperature | Charge: 0C~45ºC Discharge: -20ºC -60ºC |
