Battery Characteristic
| Content | General Parameters |
| Product Name | IBT-ENBY-51.2V150Ah |
| Battery pack | 16S1P |
| Rated Capacity | 150Ah |
| Nominal Voltage | 51.2V |
| Working Voltage Scope | 40V～58.4V |
| Charge Mode | CC, CV |
| Max. Charge Voltage | 58.4V |
| Charge Battery Cell Protection | 3.60±0.05V |
| Max. Continuous Charge Current | 100A T ≥ 10℃ / 50A 10℃ ﹥T≥ 0℃ |
| Discharge Battery Cell Protection | 2.5V |
| Max. Continuous Working Current | 150A |
| Max. Pulse Working Current | 300A 300Seconds |
| Cycle Life（80DOD%） | ＞3000 Times |
| Self-discharge Rate | ≤3% / Month |
| Communication Mode | CAN OPEN & RS485 |
Mechanical Capacity
| Content | Parameters |
| Battery Dimensions (L*W*H) | 690*260*550mm |
| Battery Weight | 95kg |
| Protection Level | IP65 |
| Charge and Discharge Connector | No connector (need only cable) |
Environment Requirements
| Content | Parameters |
| Charge | 0℃～45℃；32℉～113℉ |
| Discharge | -20℃～60℃；-4℉～149℉ |
| Storage | -20℃～45℃；-4℉～113℉ |

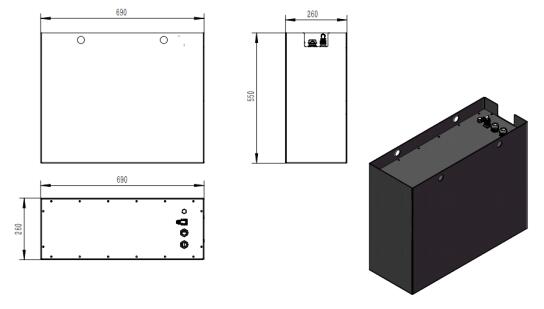

Product Drawing

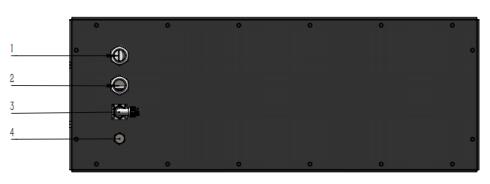

Schematic Diagram of Battery Interface
| No. | Content |
| 1 | Negative |
| 2 | Positive |
| 3 | Buzzer, Communication, Switch |
| 4 | Valve |
